DC-Pro chain hoist
- "all inclusive" features at no extra cost
- improved safety thanks to 24 V contactor control, operating limit switches and elapsed operating time counter as standard
- slipping clutch with automatic cut-out by means of speed monitoring
Product Description

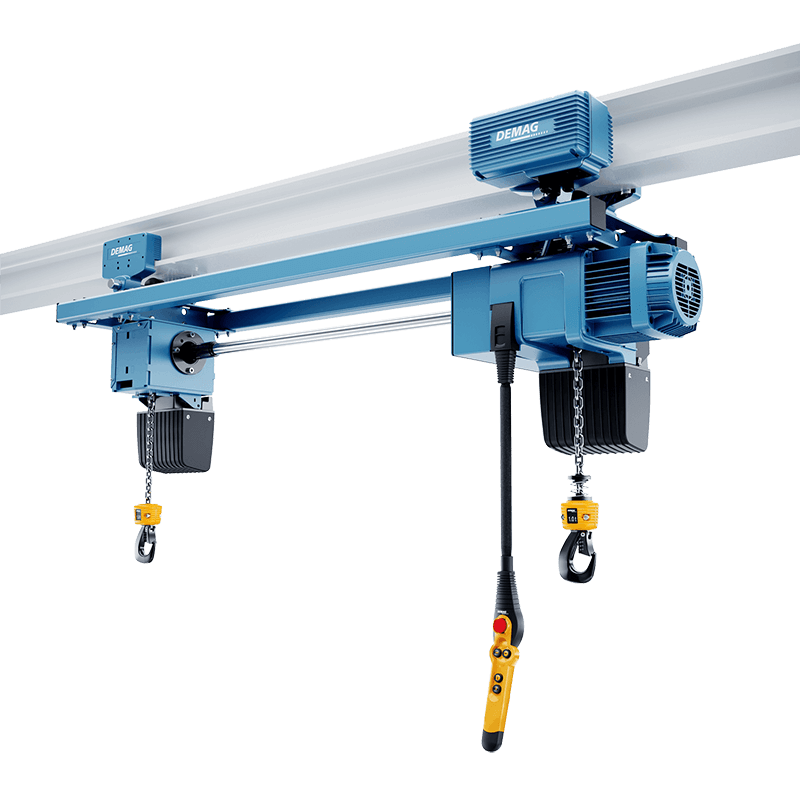

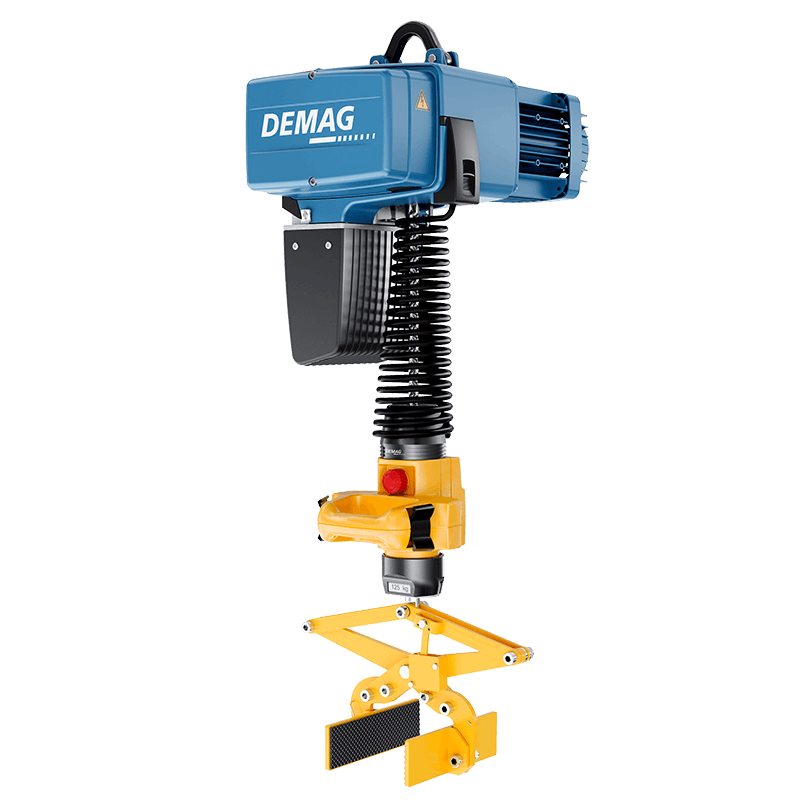

The DC-Pro chain hoist is a fully featured, highly versatile chain hoist, which can be installed and put into service in minimum time. Many features that have to be ordered and bought as extras elsewhere are already integrated as standard.
Specification
High-performance equipment
- "All inclusive" features already as standard
- Two lifting speeds as standard
- 24 V contactor control
- Operating limit switches (upper/lower)
- Elapsed operating time counter
- Aluminum housing components with powder coating
- Duty factor: 60% (40/20), 360 starts/hour
- Signals for applications with three motion axes
- Suitable for tandem operation
- Comprehensive selection of finely graded load capacities up to 5,000 kg
- Suspension brackets for improved C dimension (for sises DC 1–10)
High operating reliability
- Standard requirements satisfied for functional safety
- No continuous slipping thanks to slipping clutch with automatic cut-out
- 24 V contactor control with internal “tri-state” signal transfer
- Chain hoist and travel drive feature IP 55 enclosure, insulation class F
- Automatic braking if the control system fails
Optimum ergonomics
- Height-adjustable DSC/DSC-S control pendants with low-fatigue actuation force
- Control cable length and control pendant position can be adjusted to meet specific needs on site (without any need for wiring)
- Pivoting suspension bracket enables the chain hoist to be attached when the trolley has been fitted
