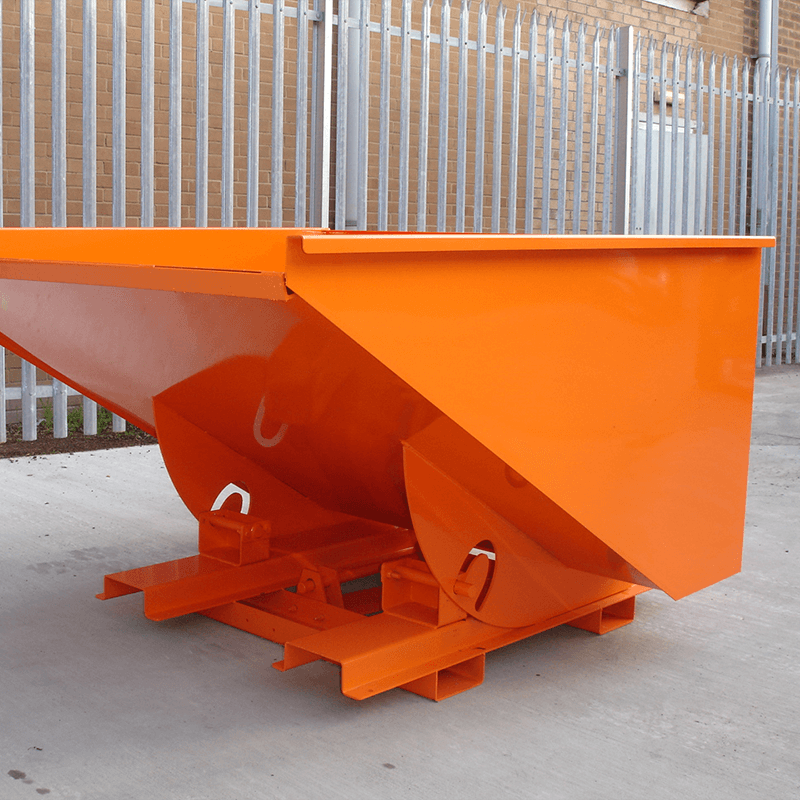

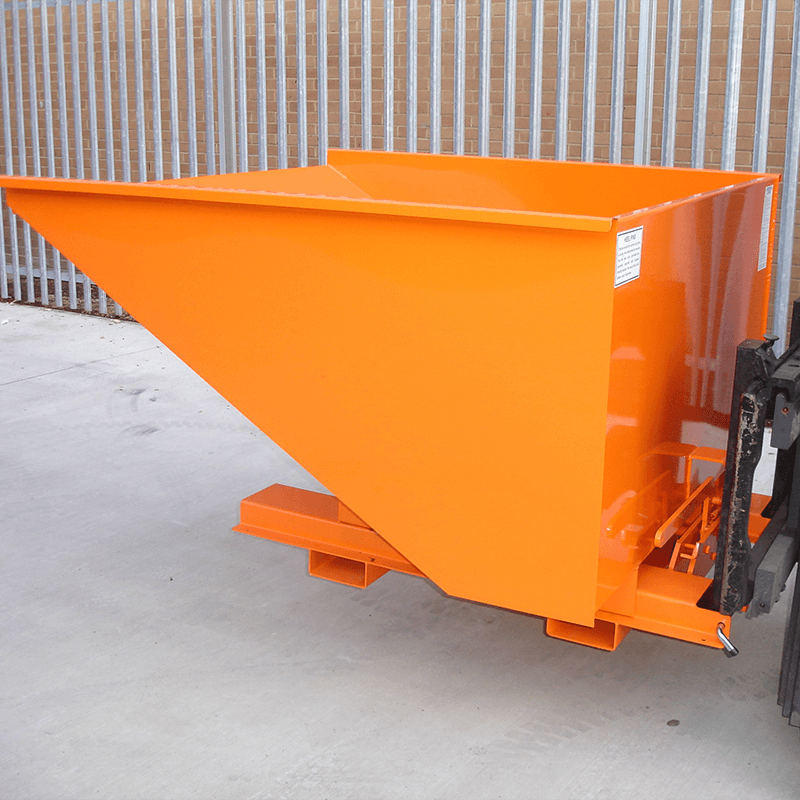

Forklift Tipping Combi Skip

• Product Description

  Designed to simplify the holding, movement and disposal of material in confined areas with the unique 4 way entry base. The skip is supplied as manual operation as standard, but automatic tipping at high level can be achieved by ordering the conversion kit allowing the forklift / tele handler driver to empty the skip without leaving the safety of his seat.

• Specification

  Model:
  ICUS-0
  Capacity (KG) 700, Weight (KG) 166, CofG (mm) 760, Length (mm) 1220, Width (mm) 1030, Height (mm) 690

  ICUS-1
  Capacity (KG) 900, Weight (KG) 222, CofG (mm) 785, Length (mm) 1600, Width (mm) 1060, Height (mm) 830

  ICUS-2
  Capacity (KG) 1200, Weight (KG) 229, CofG (mm) 725, Length (mm) 1600, Width (mm) 1300, Height (mm) 830

  ICUS-3
  Capacity (KG) 1600, Weight (KG) 251, CofG (mm) 685, Length (mm) 1600, Width (mm) 1560, Height (mm) 830

  ICUS-4
  Capacity (KG) 2200, Weight (KG) 277, CofG (mm) 650, Length (mm) 1800, Width (mm) 1560, Height (mm) 955

  Add 230mm to body length to give overall skip length
