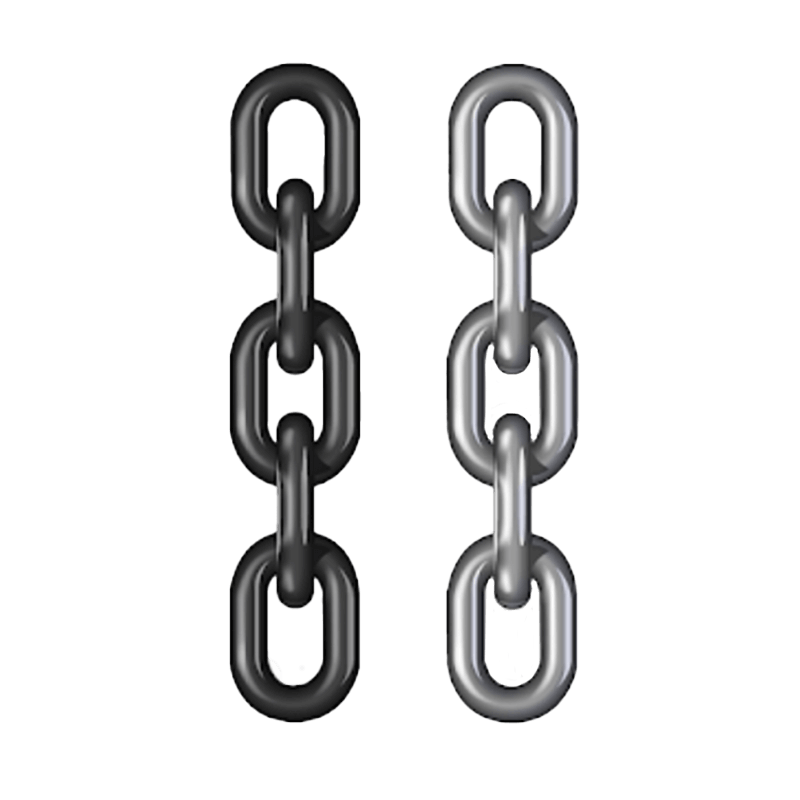

Short Link Galvanised Chain

• Product Description

  Galvanised Steel Short Link Anchor Mooring Chain, Manufactured to DIN766 – Grade 30

  Our Steel Short Link Chain has a hot dipped galvanised finish, which offers excellent corrosion resistance.

  Short Link Chain is great for use as mooring or anchoring chain, lashing chain, playground equipment, gymnasium chain and general use.

  DO NOT USE FOR OVERHEAD LIFITNG

  5mm, 6mm, 8mm, 10mm, 12mm, 16mm, 20mm and 26mm diameter Steel Chains available

• Specification

  6mm Galvanised Steel Short Link Chain

  Internal Length (H): 8mm
  Wire Diameter (D): 6mm
  Internal Width (E): 18.5mm
  Weight: 0.85kg per metre
  Breaking Load: 1,600kg

  8mm Galvanised Steel Short Link Chain

  Internal Length (H): 12mm
  Wire Diameter (D): 8mm
  Internal Width (E): 24mm
  Weight: 1.40kg per metre
  Breaking Load: 3,000kg

  10mm Galvanised Steel Short Link Chain

  Internal Length (H): 13mm
  Wire Diameter (D): 10mm
  Internal Width (E): 28mm
  Weight: 1.90kg per metre
  Breaking Load: 5,000kg

  12mm Galvanised Steel Short Link Chain

  Internal Length (H): 15mm
  Wire Diameter (D): 12mm
  Internal Width (E): 36mm
  Weight: 3.40kg per metre
  Breaking Load: 7,000kg

  16mm Galvanised Steel Short Link Chain

  Internal Length (H): 22mm
  Wire Diameter (D): 16mm
  Internal Width (E): 45mm
  Weight: 5.70kg per metre
  Breaking Load: 12,500kg

  20mm Galvanised Steel Short Link Chain

  Internal Length (H): 30mm
  Wire Diameter (D): 20mm
  Internal Width (E): 60mm
  Weight: 9.80kg per metre
  Breaking Load: 20,000kg

  26mm Galvanised Steel Short Link Chain

  Internal Length (H): 38mm
  Wire Diameter (D): 26mm
  Internal Width (E): 60mm
  Weight: 15.10kg per metre
  Breaking Load: 38,000kg
