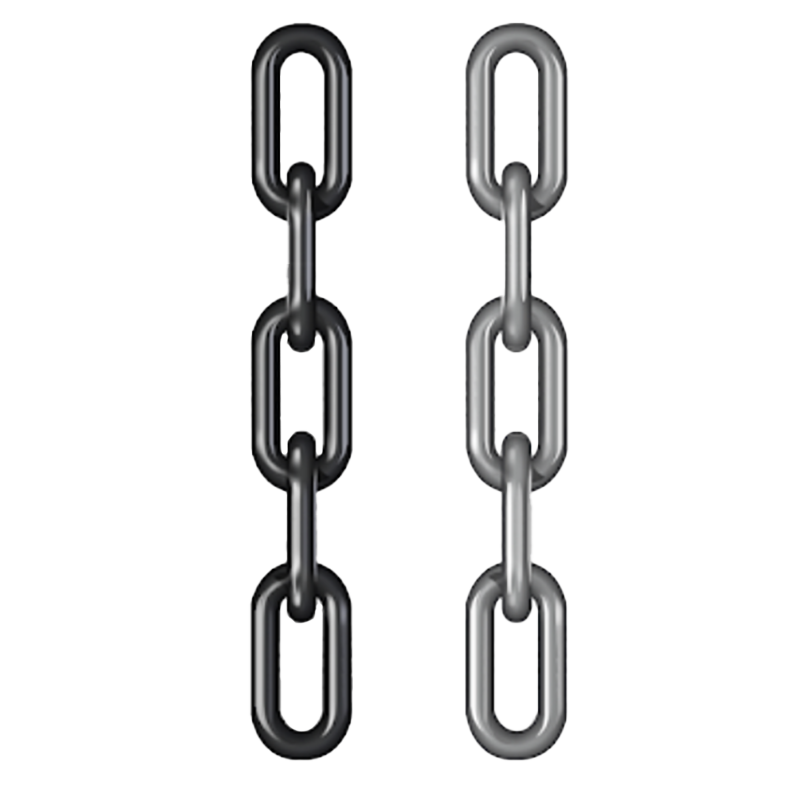

Long Link Galvanised Chain

• Product Description

  Hot Dipped Galvanised Grade 30 Steel Long Link Chain to DIN 763

  Galvanised Steel Long Link Chain is used within an variety of industries, excellent for playground equipment, farming use and mooring steel chains

  DO NOT USE FOR OVERHEAD LIFTING

  7mm, 8mm, 10mm, 12mm, 16mm and 20mm diameter long link chain is available and priced per meter

• Specification

  7mm Galvanised Steel Long Link Chain

  Internal Length (H): 12mm
  Wire Diameter (D): 7mm
  Internal Width (E): 45mm
  Weight: 1.00kg per metre
  Breaking Load: 1,500kg

  8mm Galvanised Steel Long Link Chain

  Internal Length (H): 16mm
  Wire Diameter (D): 8mm
  Internal Width (E): 52mm
  Weight: 1.20kg per metre
  Breaking Load: 2,000kg

  10mm Galvanised Steel Long Link Chain

  Internal Length (H): 19mm
  Wire Diameter (D): 10mm
  Internal Width (E): 65mm
  Weight: 1.90kg per metre
  Breaking Load: 4,000kg

  12mm Galvanised Steel Long Link Chain

  Internal Length (H): 24mm
  Wire Diameter (D): 12mm
  Internal Width (E): 65mm
  Weight: 3.20kg per metre
  Breaking Load: 6,000kg

  16mm Galvanised Steel Long Link Chain

  Internal Length (H): 30mm
  Wire Diameter (D): 16mm
  Internal Width (E): 100mm
  Weight: 4.40kg per metre
  Breaking Load: 10,000kg

  20mm Galvanised Steel Long Link Chain

  Internal Length (H): 35mm
  Wire Diameter (D): 20mm
  Internal Width (E): 120mm
  Weight: 7.00kg per metre
  Breaking Load: 16,000kg
